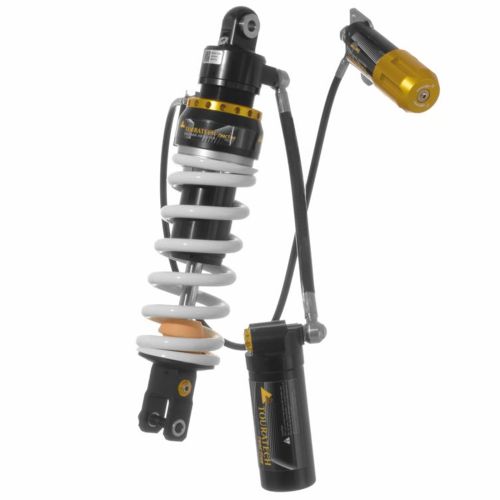

Touratech Suspension Shock Absorber for Triumph Tiger 800 XC (2011-2014) Type HighEnd
Product number:
1021-01-420-5865-0
Product information "Touratech Suspension Shock Absorber for Triumph Tiger 800 XC (2011-2014) Type HighEnd"
This high-end shock absorber for the Triumph Tiger 800 XC is perfectly designed for touring and riding operations with frequently and significantly changing load and riding conditions. From the rear bag to the loaded luggage system and/or passenger operation, any type of additional load can be compensated for by the very large adjustment range. The balance of the motorcycle can be easily and quickly restored by hand wheel via the hydraulic preload adjustment. The very finely adjustable damping at the reservoir allows for effective, precise, and personalized suspension settings for any road condition and purpose, whether on highways, federal roads, small country roads, off-road sections, long-distance travel with large luggage, or spirited, ambitious riding style.
You will experience a completely new riding sensation with your motorcycle.
Important points at a glance:
=> The shock absorber is configured and ready to ride based on our experiences for the Triumph Tiger 800 XC.
=> Parameters include: vehicle weight / linkage of the shock absorber / structural conditions / test rides.
=> The shock absorber mentioned here is designed for a rider weight of up to 100kg including travel luggage.
=> For all suspension solutions, the rear and front areas of the motorcycle should be adjusted.
=> The suitable component for the front of the Triumph Tiger 800 XC is here:
=> Progressive fork springs, Triumph Tiger 800 XC type: 01-420-5838-0
=> When replacing only one component, optimal riding behavior is not achieved.
Features of the Touratech Suspension high-end shock absorber:
=> The shock absorber housing is made of aluminum.
*** This results in the lowest possible weight.
=> All components are designed for intensive use with heavy touring motorcycles.
=> Special, low-friction seals are installed.
*** This results in very low wear and a long lifespan of the shock absorber.
=> Stable stainless steel bushings are installed in the shock absorber eye for the mounting screws.
*** This ensures a stable, play-free fit of the mounting screw even under the highest loads.
=> Separation piston design. This allows the damping fluids oil and nitrogen to act separately.
*** This results in a finer response of the shock absorber.
*** This provides high, precise damping performance even at very high damping frequencies (bad road conditions).
*** Better cooling of the shock absorber.
*** Minimal restrictions on the installation position of the shock absorber in the motorcycle.
=> Hydraulic high-end preload adjustment via a conveniently positioned hand wheel.
=> The damping settings were developed based on the experiences and requirements of Touratech.
=> The basis is many travel kilometers and the experiences from the operations of the Touratech race team.
=> High-end compression damping adjustment is always separately adjustable in high speed and low speed.
*** This allows for very individual adjustment of the compression/rebound stage. Ideal adaptation to changing requirements.
=> Separate high-end reservoir in the damping group of the shock absorber.
*** Better cooling of the damping during operation.
*** This results in higher load capacity and longer lifespan of the shock absorber.
=> QR code on the shock absorber with individual shock absorber information.
*** This allows for easy retrieval of shock-specific information by scanning with a smartphone.
*** Always accessible information on the basic setting of the shock absorber. Reset possible in case of incorrect settings.
The basic setup installed here is tuned for riders up to 100kg including travel luggage. Adjustments for much higher loads or other extraordinary requirements are possible. The shock absorber will then be individually adapted to your needs by us through a spring with a higher spring rate and possibly an extension through a PDS system. Please use our suspension check form and send us the
completed form.
Do you have further questions? We are happy to advise you personally, please contact us.
