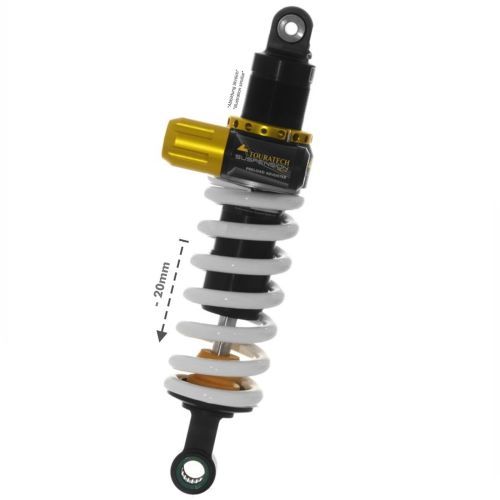

Touratech Suspension Lowering -20mm Triumph Tiger 900 Rallye Pro from 2020 Type Explore HP/PDS

This shock absorber is perfect for reducing the seat height (-20mm) on the Triumph Tiger 900 Rallye Pro. At the same time, your Triumph Tiger 900 Rallye Pro remains well-tuned and very suitable for touring. More performance and comfort for your Tiger 900 Rallye Pro with the Touratech Suspension Shock Absorber Type Level2. The Level2 shock absorber in emulsion design can be adjusted for load adaptation to the large travel luggage via handwheel and hydraulic preload adjustment. Even with this design the PDS is installed. A hydraulic bottoming protection that prevents bottoming out even under the most extreme trail conditions with full luggage. Mechanical overload of the shock absorber is prevented. The damping works depending on the terrain. In the majority of driving situations, the shock absorber responds finely and is tuned for comfort and energy efficiency.

Important points at a glance:

- The shock absorber is configured based on our experiences for the Triumph Tiger 900 Rallye Pro and is ready to ride.

- Parameters include: vehicle weight / linkage of the shock absorber / structural conditions / test rides.

- The shock absorber mentioned here is designed for a rider weight of up to 100kg including travel luggage.

- For all suspension solutions, the rear and front areas of the motorcycle should be adjusted.

- IMPORTANT: We strongly advise against bottoming out the fork tubes at the fork clamp.

  This would severely impair the motorcycle's handling.

Note:

For the safe stand of your Triumph Tiger 900 Rallye Pro after lowering, we recommend shortening the side stand.

Scope of delivery:

- Ready-to-install shock absorber -20mm.

- ABE documents

- Installation instructions / user manual

The basic setup installed here is tuned for riders up to 100 kg plus travel luggage. Adjustments for much higher loads or other exceptional requirements are possible. The shock absorber will then be individually adjusted to your needs.

Do you have further questions?

We are happy to advise you personally, please contact us.

Email: [email protected] Phone +49 (0)7728-9279-1555

Please use our suspension check form and send us the completed form.
