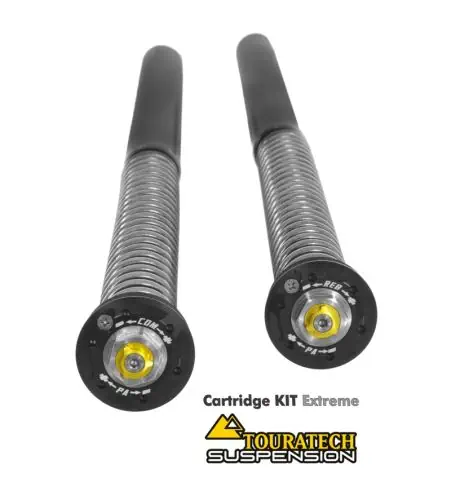

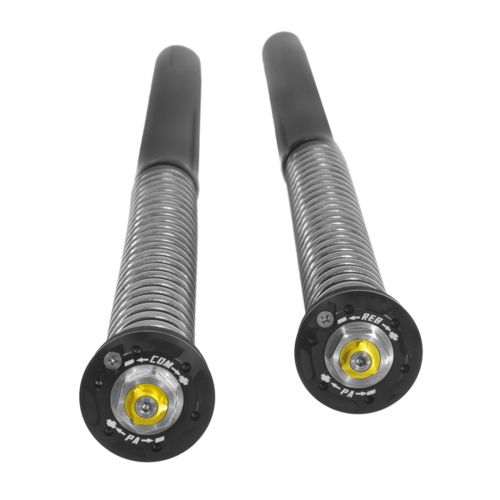

Touratech Suspension Cartridge Kit Extreme for BMW F800GS Adventure from 2013
Product number:
1021-01-048-5846-0
Product information "Touratech Suspension Cartridge Kit Extreme for BMW F800GS Adventure from 2013"
The Touratech Suspension Cartridge Kit Extreme is simply put a shock absorber for the fork and represents the absolute premium class in suspension technology. The Closed Cartridge is installed in the original fork. This way, the fork bridge/handlebar mount, brakes, wheel guidance, and steering geometry remain fully intact. No additional modifications to the fork are required.
This Closed Cartridge is perfectly designed for touring and riding operations with frequently and significantly changing loads and riding conditions or extreme demands.
This means for you:
Any luggage volume from the tail bag to the loaded luggage system and/or passenger operation is accommodated by the extreme adjustment range. The spring preload, rebound, and compression damping are fully adjustable from the top. The damping oil is contained in a closed cartridge, allowing for precise dosing of the oil quantity. This results in the Closed Cartridge offering a significantly finer and more pleasant response behavior of the fork. The very finely adjustable damping allows for an effective, precise, and personalized suspension setting for any road condition and purpose, whether on highways, federal roads, small country roads, off-road sections, long-distance travel with large luggage, or a sporty, ambitious riding style. Should exceptionally harsh road conditions affect the front wheel, the integrated "Hydraulic Endstop" prevents mechanical bottoming out of the fork.
You will experience a completely new riding sensation with your motorcycle.
Features of the Touratech Suspension Closed Cartridges:
- The Closed Cartridge is installed in the original fork. This way, the fork bridge/handlebar mount
brakes, wheel guidance, and steering geometry remain fully intact.
- No additional modifications to the fork are required.
- A Closed Cartridge is an extreme shock absorber in the fork.
- Fully adjustable spring preload from the top (with adjustment tool included) in both fork legs for optimal motorcycle balance. 20mm over 12 clicks.
- Separately adjustable rebound damping 20 clicks (1 fork leg).
- Compression damping 20 clicks (1 fork leg) damping.
- For precise damping adjustment at very high damping frequency and high load (bad roads, off-road with luggage).
- High damping stability and robustness due to a built-in 35 mm piston.
- Closed design (Closed Cartridge) thus closed oil cartridge for damping
and the oil in the fork for pure lubrication.
- Damping oil (cartridge) and nitrogen, in a nitrogen bubble at the foot of the cartridge,
- Very fine response behavior with simultaneously extremely high stability and stability of the fork.
- Due to the separation of oil and nitrogen, no foaming and no stick-slip in the fork.
- This means reproducible damping performance at all times, even under the most extreme demands.
- This fork does not bottom out. Each cartridge is equipped with a "Hydraulic endstop" against bottoming out.
The basic setup is tuned for the demanding adventure rider with luggage.
Adjustments for exceptional requirements are possible. The shock absorber will then be individually adjusted to your needs by us with a spring of the appropriate spring rate and further configurations.
Do you have further questions? We are happy to advise you personally, please contact us.
Scope of delivery:
- 2x Closed Cartridge
with damping adjustment, (1x) rebound, (1x) compression.
with spring preload adjustment (via 22mm wrench)
- Adjustment tool for damping
- Mounting tool for closure cap.
- Ready for installation and filled with pre-assembled fork spring.
- 1 liter of oil (for fork installation)
- User manual and installation instructions
- 2x fork protection stickers.
This Closed Cartridge is perfectly designed for touring and riding operations with frequently and significantly changing loads and riding conditions or extreme demands.
This means for you:
Any luggage volume from the tail bag to the loaded luggage system and/or passenger operation is accommodated by the extreme adjustment range. The spring preload, rebound, and compression damping are fully adjustable from the top. The damping oil is contained in a closed cartridge, allowing for precise dosing of the oil quantity. This results in the Closed Cartridge offering a significantly finer and more pleasant response behavior of the fork. The very finely adjustable damping allows for an effective, precise, and personalized suspension setting for any road condition and purpose, whether on highways, federal roads, small country roads, off-road sections, long-distance travel with large luggage, or a sporty, ambitious riding style. Should exceptionally harsh road conditions affect the front wheel, the integrated "Hydraulic Endstop" prevents mechanical bottoming out of the fork.
You will experience a completely new riding sensation with your motorcycle.
Features of the Touratech Suspension Closed Cartridges:
- The Closed Cartridge is installed in the original fork. This way, the fork bridge/handlebar mount
brakes, wheel guidance, and steering geometry remain fully intact.
- No additional modifications to the fork are required.
- A Closed Cartridge is an extreme shock absorber in the fork.
- Fully adjustable spring preload from the top (with adjustment tool included) in both fork legs for optimal motorcycle balance. 20mm over 12 clicks.
- Separately adjustable rebound damping 20 clicks (1 fork leg).
- Compression damping 20 clicks (1 fork leg) damping.
- For precise damping adjustment at very high damping frequency and high load (bad roads, off-road with luggage).
- High damping stability and robustness due to a built-in 35 mm piston.
- Closed design (Closed Cartridge) thus closed oil cartridge for damping
and the oil in the fork for pure lubrication.
- Damping oil (cartridge) and nitrogen, in a nitrogen bubble at the foot of the cartridge,
- Very fine response behavior with simultaneously extremely high stability and stability of the fork.
- Due to the separation of oil and nitrogen, no foaming and no stick-slip in the fork.
- This means reproducible damping performance at all times, even under the most extreme demands.
- This fork does not bottom out. Each cartridge is equipped with a "Hydraulic endstop" against bottoming out.
The basic setup is tuned for the demanding adventure rider with luggage.
Adjustments for exceptional requirements are possible. The shock absorber will then be individually adjusted to your needs by us with a spring of the appropriate spring rate and further configurations.
Do you have further questions? We are happy to advise you personally, please contact us.
Scope of delivery:
- 2x Closed Cartridge
with damping adjustment, (1x) rebound, (1x) compression.
with spring preload adjustment (via 22mm wrench)
- Adjustment tool for damping
- Mounting tool for closure cap.
- Ready for installation and filled with pre-assembled fork spring.
- 1 liter of oil (for fork installation)
- User manual and installation instructions
- 2x fork protection stickers.
Login
Accessory Items

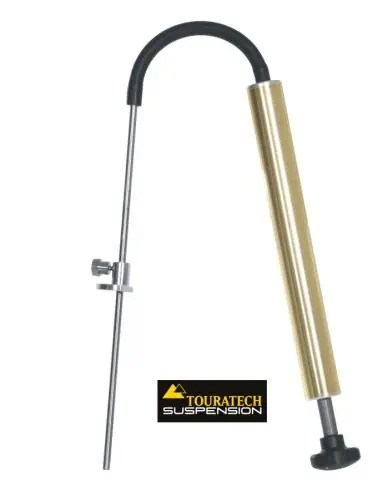

Assembly Tool Oil Level / Air Chamber for Cartridge Kit and Fork Springs
