1" Ball KitThe 1" Ball Kit allows for the attachment of navigation devices to handlebars with a diameter of 22, 28 mm, or 1 inch using a mounting clamp. A clamp arm can be mounted on the ball adapter, allowing for variable positioning of the navigation device.Mounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchScope of Delivery1 x Ball adapter1 x Mounting clampInstallation instructionsMounting materialsDetailsMaterial: Aluminum / fiberglass reinforced plasticSurface: AnodizedColor: black / blackTotal weight: approx. 0.3 kg

Ball Clamp for Steering Head TubeMounting navigation devices can be tricky on a supersport bike. We have a solution! Our ball clamp can be attached using two clamping sleeves in steering head tubes with an inner diameter of 12.5 to 25.0 mm.The 1" ball is compatible with our clamp arm and device holders as well as RAM systems. This allows you to position your navigation device, GoPro, or camera individually on supersport bikes.Attachment to the steering head tubeSuitable for supersport bikes1" ball compatible with clamp arm and device holdersScope of Delivery1 x ball clamp for steering head tubeInstallation instructionsMounting materialsDetailsMaterial: AluminumSurface: AnodizedColor: BlackTotal weight: Approx. 0.2 kg

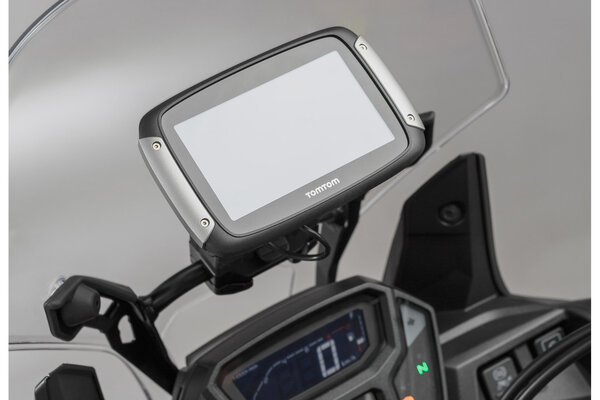

Navi Holder for Tube Ø 10/12 mmThe central brace, windscreen mount, or other tubes in the cockpit can provide ideal mounting options for the navigation device depending on the vehicle. For these models, the removable Navi holder with clamp for tubes is available.For mounting on the handlebar central brace or other tubes with Ø 10/12 mmRemovable, vibration-dampened GPS device holderSwivels for ideal visibility of the devicesMounting plate with universal hole pattern provides secure hold for common navigation models and Navi Case Pro device bags or hard cases from SW-MOTECHDelivery Contents1 x Navi Holder for Tube Ø 10/12 mmInstallation instructionsMounting materialsDetailsMaterial: Aluminum / SteelSurface: Anodized / Powder-coatedColor: Black / BlackTotal Weight: Approx. 0.3 kgNoteThe hole pattern on the supplied mounting plate corresponds to that of the device bases of all TOMTOM Rider, Garmin Montana, Blaupunkt MotoPilot, as well as all RAM applications and our GPS bags.For the Garmin Zumo 340/345/350/390/395/590/595/660, the adapter kit for Garmin Zumo models GPS.00.085.10000/B is required.Approval NoteThis product does not require approval. Therefore, it does not need any certification marks, expert opinions, or general operating permits. The information in the installation instructions must be observed.

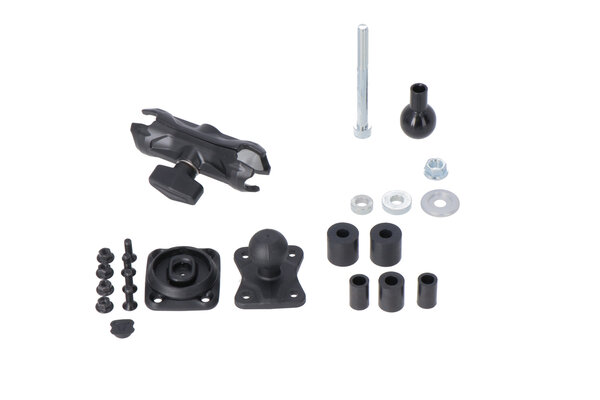

Navigation Mount for Steering Head Tube with T-LockMounting navigation devices can be tricky on a supersport bike. We have a solution! Our ball clamp can be attached using two clamping sleeves in steering head tubes with an inner diameter of 12.5 to 25.0 mm.The 1” ball is compatible with our clamp arm and device holders as well as RAM systems. This allows you to position your navigation device, GoPro, or camera individually on supersport bikes.In addition to the various mounting elements included, the T-Lock mount offers a quick attachment option for additional devices on the steering head tube. Once the T-Lock mount is installed, navigation devices or other equipment can be easily removed with a quarter turn and just as quickly reattached.T-Lock mount for quick attachment to the clamp armAttachment to the steering head tubeSuitable for supersport bikes1” ball compatible with clamp arm and device holdersDelivery Contents1 x Clamp Arm1 x Ball Adapter M81 x Ball Joint with Mounting Plate1 x T-Lock MountInstallation InstructionsMounting MaterialDetailsTotal Weight: approx. 0.3 kg

Universal Navi-KitAnd action! The GoPro HD HERO camera models combine robustness, versatile applications, and surprisingly high image quality for their size. This makes the compact digital camera ideal for use on a motorcycle. SW-MOTECH provides a versatile universal mount that comes as a complete set with various mounting options for the current generation of action cameras. Available mounting options include a mirror thread holder as well as mounts with M6 or M8 balls, as well as clamps for tube diameters of 22 and 28 mm and 1 inch. The swiveling RAM arm makes it easy to position the camera accurately, allowing the framing to be adjusted precisely to the rider's needs.Our universal kit offers a variety of different mounting options on the motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A swiveling clamp arm facilitates positioning in the cockpit – keeping the display always in view without obstructing the view of the instruments.Complete set for mounting a GoPro HD cameraFor GoPro HD HERO and GoPro HD SessionNumerous mounting optionsUsable on almost any motorcycle modelMounting clamps made of sturdy, fiberglass-reinforced plasticFor mounting on handlebars, frames, or crash bars with tube diameters of 22 mm, 28 mm, or 1 inchMounting in the handlebar mount is also possibleCan also be mounted directly on M6 or M8 threadsBalls and 2-inch clamp arm allow for individual positioningClamp arm can swivel around two axes by up to 90° or 45°1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchDelivery Contents1 x RAM clamp arm1 x Ball adapter M81 x RAM ball adapter for GoPro1 x Mounting plate for mirror thread1 x Mounting clampAssembly instructionsMounting materialsDetailsColor: blackTotal weight: approx. 0.5 kg

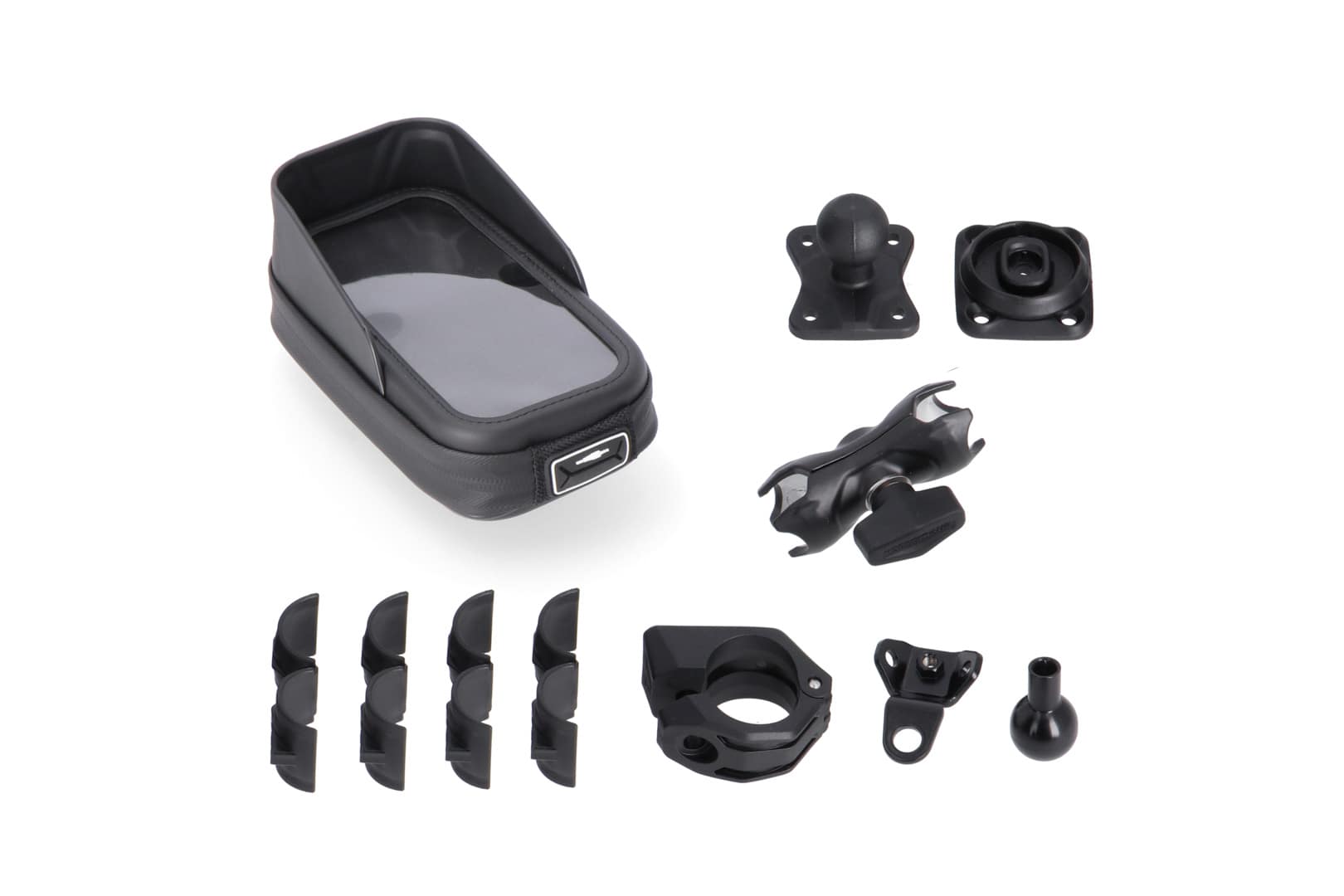

Universal Navi-Kit with Phone CaseThis all-in-one package includes a weatherproof phone case and various mounting elements. The T-Lock mount on the back of the phone case allows for quick attachment to the universal Navi-Kit: With a quarter turn clockwise, the phone case is secured to the clamp arm.Compatible with the following models:SamsungA10, A12, A20S, A20E, A21S, A30S, A31, A32, A50, A51, A40, A41, A42, A50, A51, A70, A71, A90, M11, M20, M21, M30S, M31, M31S, M51Galaxy SeriesS5, S6, S6 Edge, S7, S7 Edge, S8, S8+, S9, S9+, S10, S10 Lite, S10e, S10+, S20, S20+, S20 FE, S20 Ultra, S21, S21+, S21 Ultra iPhone6, 6 Plus, 6S, 6S Plus, 7, 7 Plus, 8, 8 Plus, X, XR, XS, XS Max, 11, 11 Pro, 11 Pro Max, 12, 12 Mini, 12 Pro, 12 Pro Max, SE (2021)Xperia SeriesXA2, XA2 Ultra, XA2 Plus, XZ, XZ Premium, XZ1, XZ1 Compact, XZ2, XZ2 Compact, XZ2 Premium, XZ3, L1, L2, L3, L4, 1, 1 II, 5, 5 II, 10, 10 II, 10 PlusHuaweinova 5T, Mate Xs, Mate 20, Mate 20 X, Mate 20 lite, Mate 30, Mate 30 Pro, Mate 40 Pro, P smart, P smart+, P smart Z, P smart Pro, P30, P30 lite, P30 Pro, P40, P40 lite, P40 lite E, P40 Pro, P40 Pro+, Y5, Y5p, Y6, Y6p, Y6s, Y7XiaomiMi 11, Redmi Note 8 ProOur universal kit offers a variety of mounting options on the motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A pivoting clamp arm makes positioning in the cockpit easier – keeping the display always in view without obstructing the view of the instruments.Spray-proof and touch-compatible phone case with sun visorFor devices in portrait modeInternal dimensions of phone case: 83 x 171 mmExternal dimensions of phone case: 95 x 185 mmViewing window size of phone case: 68 x 156 mmT-Lock holder for quick attachment to the clamp armBalls and 2-inch clamp arm allow for individual positioningClamp arm can pivot around two axes by up to 90° or 45°1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchDelivery Contents1 x Phone Case1 x Mounting Clamp with Rubber Inserts1 x Ball with M8 Thread and M6 Adapter1 x 2" Clamp Arm1 x Ball Joint with Mounting Plate1 x T-Lock HolderInstallation InstructionsMounting MaterialDetailsTotal Weight: approx. 0.6 kgNoteWhether all functions of the touch control panel can be used depends on the device model (e.g., fingerprint sensor)

Universal Navi-Kit with Smartphone DrybagThis all-in-one package includes a waterproof smartphone drybag and various mounting elements. The T-Lock mount on the back of the smartphone drybag allows for quick attachment to the universal Navi-Kit: With a quarter turn clockwise, the smartphone drybag is secured to the clamp arm.The waterproof smartphone drybag with a large viewing window and internal dimensions of 160 x 80 mm is suitable for almost all common smartphones up to a size of 6.5 inches.Our universal kit offers a variety of mounting options on the motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A swiveling clamp arm makes positioning in the cockpit easier – keeping the display always in view without obstructing the view of the instruments.Suitable for smartphones up to 6.5 inchesInternal dimensions: 160 x 80 mmWaterproof roll closureWater-repellent coatingT-Lock holder for quick attachment to the clamp armBalls and 2-inch clamp arm allow for individual positioningClamp arm can swivel up to 90° or 45° on two axes1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchDelivery Contents1 x Smartphone Drybag1 x Mounting clamp with rubber inserts1 x Ball with M8 thread and M6 adapter1 x 2" clamp arm1 x Ball joint with mounting plate1 x T-Lock holderInstallation instructionsMounting materialsDetailsTotal weight: approx. 0.5 kg

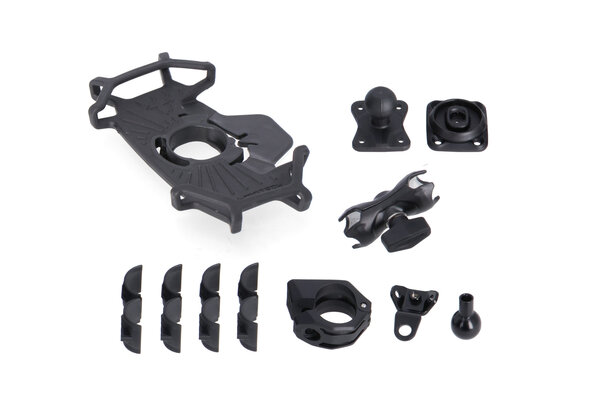

Universal Navi-Kit with T-Lock Holder for Small SmartphonesOur universal kit offers a variety of mounting options for your motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A swiveling clamp arm makes positioning in the cockpit easier – keeping the display in view without obstructing the instruments. The included T-Lock holder with smartphone mount allows for quick attachment of smartphones to the universal Navi-Kit. With a quarter turn clockwise, the T-Lock holder can be secured to the clamp arm. The silicone straps of the smartphone mount allow for the attachment of devices of various sizes.For smartphones with maximum dimensions of 150 x 75 x 10 mm and minimum dimensions of 130 x 70 x 6 mmT-Lock holder for quick attachment to the clamp armSmartphone mount with silicone strapsBalls and 2-inch clamp arm allow for individual positioningClamp arm can swivel around two axes by up to 90° or 45°1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchDelivery Contents1 x Mounting clamp with rubber inserts1 x Ball with M8 thread and M6 adapter1 x Holder for attachment to the mirror thread1 x 2" clamp arm1 x Ball joint with mounting plate1 x T-Lock holder for smartphoneAssembly instructionsMounting materialsDetailsTotal weight: approx. 0.5 kg

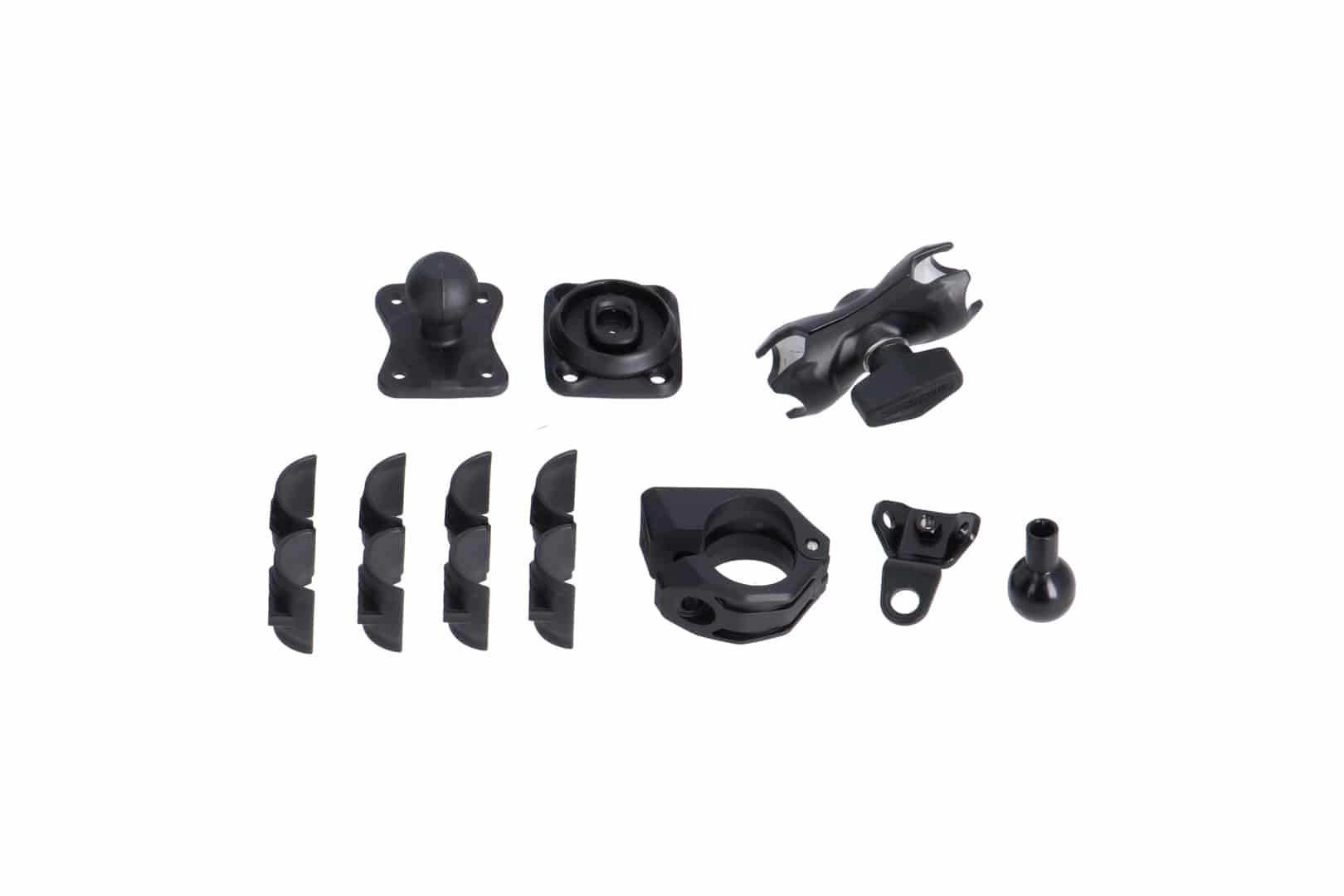

Universal Navi-Kit with T-LockOur universal kit offers a variety of mounting options on the motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A swiveling clamp arm makes positioning in the cockpit easier – keeping the display always in view without obstructing the view of the instruments. The included T-Lock holder allows for quick attachment of device bags such as the Navi Case and Phone Case to the Universal Navi-Kit. With a quarter turn clockwise, the bag can be secured to the clamp arm.T-Lock holder for quick attachment to the clamp armBalls and 2-inch clamp arm allow for individual positioningClamp arm can swivel around two axes by up to 90° or 45°1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchScope of Delivery1 x mounting clamp with rubber inserts1 x ball with M8 thread and M6 adapter1 x holder for attachment to the mirror thread1 x 2" clamp arm1 x ball joint with mounting plate1 x T-Lock holderInstallation instructionsMounting materialsDetailsTotal weight: approx. 0.4 kg

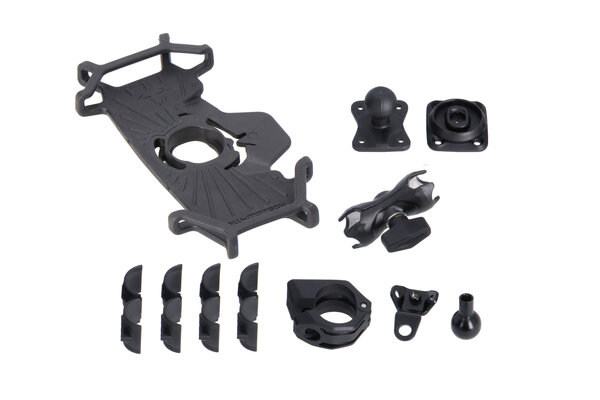

Universal Navi-Kit with T-Lock Holder for Large SmartphonesOur universal kit offers a variety of mounting options on the motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A swiveling clamp arm makes positioning in the cockpit easier – keeping the display always in view without obstructing the view of the instruments. The included T-Lock holder with smartphone mount allows for quick attachment of smartphones to the universal Navi-Kit. With a quarter turn clockwise, the T-Lock holder can be secured to the clamp arm. The silicone straps of the smartphone mount allow for the attachment of devices of various sizes.For smartphones with maximum external dimensions of 165 x 80 x 12 mm and minimum external dimensions of 144 x 71 x 7 mmT-Lock holder for quick attachment to the clamp armSmartphone mount with silicone strapsBalls and 2-inch clamp arm allow for individual positioningClamp arm can swivel around two axes by up to 90° or 45°1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchDelivery Contents1 x Mounting clamp with rubber inserts1 x Ball with M8 thread and M6 adapter1 x Holder for attachment to the mirror thread1 x 2" clamp arm1 x Ball joint with mounting plate1 x T-Lock holder for smartphoneAssembly instructionsMounting materialsDetailsTotal weight: approx. 0.5 kg

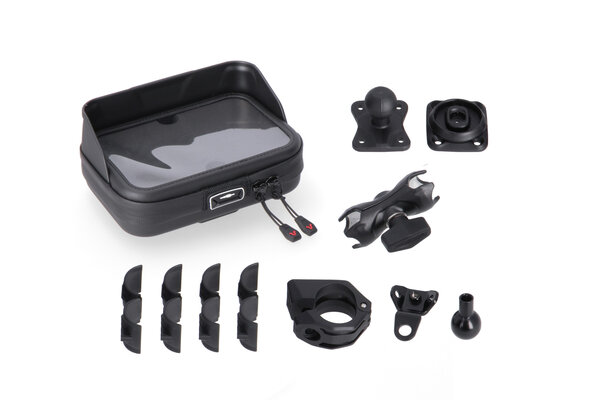

Universal Navi-Kit with Navi CaseThis all-in-one package includes a weatherproof Navi Case device bag and various mounting elements. The T-Lock mount on the back of the Navi Case allows for quick attachment to the Universal Navi-Kit: With a quarter turn clockwise, the Navi Case is secured to the clamp arm.Compatible with the following models:Blaupunkt Motopilot 43 EU LMUBMW NavigatorV, VIGarmin Zumo340-LM, 345, 346 LMT-S, 350 LM, 390 LM, 395 LM, 396 LMT-S, 590, 595 LM, 660, DriveSmart 55 MT-D, DriveAssist 51 EU LMT-DTomTom Rider:50, 400, 420, 410, 450, 500, 550, Urban Rider, Start 52, Start 62, GO Premium, GO Premium, GO Essential TMC, GO Essential TMC, GO 520, GO 620, GO 5200, GO 6200Our Universal Kit offers a variety of mounting options on the motorcycle: The included 1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clamp. The mounting clamp is designed for handlebars with a diameter of 22, 28 mm, or 1 inch. A pivoting clamp arm makes positioning in the cockpit easier – keeping the display always in view without obstructing the view of the instruments.Water-resistant and touch-compatible Navi Case device bag with sun visorFor devices in landscape formatInternal dimensions of Navi Case: 171 x 114 mmExternal dimensions of Navi Case: 185 x 125 mmViewing window size of Navi Case: 155 x 98 mmT-Lock holder for quick attachment to the clamp armBalls and 2-inch clamp arm allow for individual positioningClamp arm can pivot up to 90° or 45° on two axes1-inch ball can be mounted on an M6 or M8 thread, on the mirror thread holder, or with a mounting clampMounting clamp for handlebars with a diameter of 22, 28 mm, or 1 inchDelivery Contents1 x Navi Case1 x Mounting clamp with rubber inserts1 x Ball with M8 thread and M6 adapter1 x 2" clamp arm1 x Ball joint with mounting plate1 x T-Lock holderInstallation instructionsMounting materialsDetailsTotal weight: approx. 0.7 kgNoteWhether all functions of the touch control panel can be used depends on the device model (e.g., fingerprint sensor)
