Product information "SW-Motech PRO Tank Ring Black for Kawasaki Z650 (16-) / Ninja 650 (16-)"
PRO Tankring

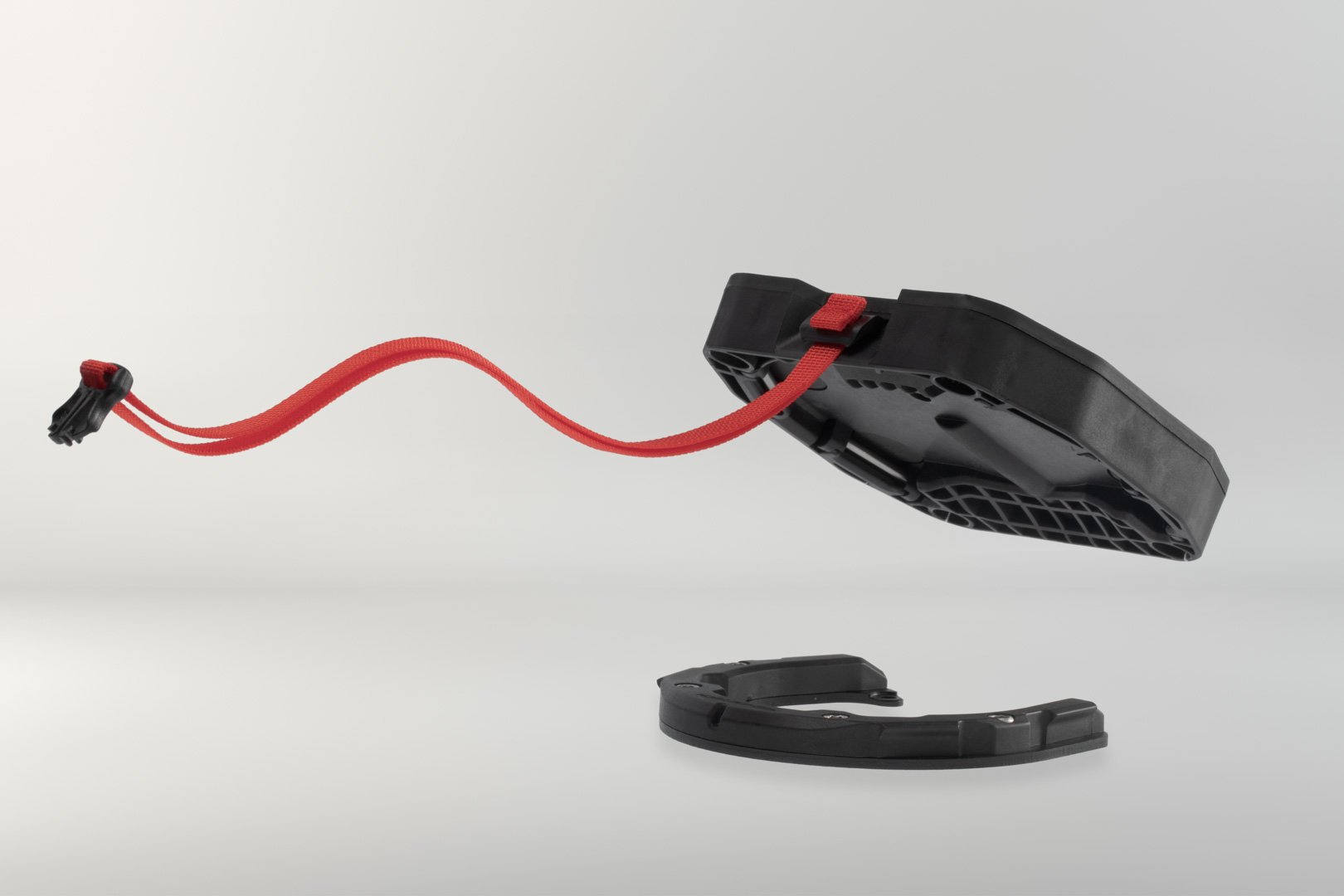

In this model of the PRO Tankring, a tank ring adapter replaces the factory-installed fuel filler neck. The PRO Tankring is attached to the tank ring adapter. Two elevation elements ensure the optimal positioning of the tank bag over the tank.
The PRO Tankring perfectly combines the innovative power of two German companies: The proven QUICK-LOCK locking mechanism of the SW-MOTECH tank rings can now be operated even more easily thanks to the magnetic guiding aid of Fidlock technology. We have significantly improved the positioning of the upper ring: The movable upper ring is already pre-mounted with a guide rail on the tank bag, and the tank bag does not need to be drilled.
This allows the upper ring to be individually aligned on the guide rail at the bottom of the tank bag. Once the suitable position is found, the upper ring is securely screwed in place. When switching to another motorcycle, the position of the upper ring can be adjusted accordingly.
The magnetic guiding aid, developed by Fidlock, complements the already mature mechanical QUICK-LOCK locking mechanism from SW-MOTECH: The magnets guide the upper ring into the correct position on the tank ring, and the closure locks securely. Thus, the power of the magnets supports the placement of the tank bag. With one hand, attach the tank bag and ride off – the luggage is secure, and it’s also fun.
The mechanical locking mechanism secures the tank bag, and the magnets guide the two parts of the ring together. The robust glass-fiber reinforced plastic with its high-precision locking geometry ensures that the tank bag remains firmly in place in all road conditions.
The patented PRO Tankring is tailored to the fuel filler neck of the motorcycle model. This ensures the best possible positioning on the tank.
- Model-specific adapter ring for the best fit and individual solutions
- Easy installation on the fuel filler neck
- Magnetic guiding aid in the PRO Tankring for easy attachment
- Quick release via pull strap allows removal of the PRO tank bag with one hand
- The patented PRO Tankring provides secure support for PRO tank bags
- Easy refueling, fuel cap can be opened as usual
- Made of glass-fiber reinforced polyamide
- Paint-friendly solution: the tank bag does not rest on the tank
Elevation Element for PRO Tankring
- Elevation of 12 mm
- For individual adjustment of the position of the tank bag on the tank
Details
- Material: glass-fiber reinforced plastic
- Material thickness: 1.20 cm
- Color: black
- Total weight: approx. 0.1 kg
Note
- Only usable in conjunction with PRO tank rings and tank bags
PRO Tankring
- Model-specific adapter ring for the best fit and individual solutions
- Easy installation on the fuel filler neck
- Magnetic guiding aid in the PRO Tankring for easy attachment
- Quick release via pull strap allows removal of the PRO tank bag with one hand
- The patented PRO Tankring provides secure support for PRO tank bags
- Easy refueling, fuel cap can be opened as usual
- Made of glass-fiber reinforced polyamide
- Paint-friendly solution: the tank bag does not rest on the tank
Details
- Material: glass-fiber reinforced plastic / aluminum
- Color: black
- Total weight: approx. 0.2 kg
Note
- The delivery includes a tank ring adapter. This replaces the factory-installed fuel filler neck.
- The tank rings of the PRO series are not compatible with the EVO tank bags.
Delivery Contents
- 1 x PRO Tankring
- 1 x Tank ring adapter
- 2 x Elevation elements
- Installation instructions
- Mounting material
Details
- Material: glass-fiber reinforced plastic / aluminum
- Color: black
- Total weight: approx. 0.4 kg
Note
- The delivery includes two elevation elements of 6 mm and 12 mm each, as well as a tank ring adapter. This replaces the factory-installed fuel filler neck.
- The tank rings of the PRO series are not compatible with the EVO tank bags.
