Duonix Bike-Scan 2 Pro Diagnostic Tool for BMW with OBD-2 Diagnostic Cable

Diagnostic device for motor vehicles and motorcycles. A diagnostic system with an intuitive and easy-to-understand user interface in 10 languages. The simple symbol-based menu structure helps the user complete their tasks quickly and reliably. With extensive functions and special features, the user has access to a unique diagnostic system. The diagnostic device is indispensable in a modern automotive/motorcycle workshop.

Supported control units:
Engine electronics / Engine control unit CDI
Central electronics / Chassis electronics BCM
Instrument cluster / Speedometer
Tire pressure monitoring RDKS
ABS – Anti-lock braking system
Theft warning system / Alarm system
Radio / Multimedia
Radio control unit
Electric hydraulic tilt stand
Battery management system BMS
Integrated power supply control module ICSM
Electric power steering EPS
Electronic throttle control EPT
Exhaust flap control FCE
Keyless GO system
LED headlights
Automatic transmission / Transmission control
Traction control
Airbag

Diagnostic functions / Diagnostic capabilities:
Service reset / Service Reset / DESMO / Oil
Read and clear complete fault memory
Key programming
Adjust fuel injection system
Unlock immobilizer
Adjust / Adapt throttle valve
Set date and time, e.g., after battery replacement
Reset adaptation values
Specific actual/target values / Live Data
Read current mileage and software
Read chassis number
Valve clearance service reset
Bleed ABS pressure modulator / Bleeding test from the ABS hydraulic system
Initialize brake wear indicator
Calibrate windscreen
ESA/SAF shock absorber calibration
Stepper adjustment
Calibration: height sensor, windscreen, idle actuator, film sensor, etc…
Sensor adjustment, e.g., exhaust flap, interference pipe flap, reverse assistance adjustment, speed sensor, transmission, idle actuator, lambda sensors, etc.
Actuator diagnosis, e.g., fan, fuel injector, valves
Tire pressure sensor RDC learning – programming – initializing
No limitations or restrictions on models

Technical specifications:
3.5-inch IPS color display with high resolution
Robust housing with ergonomic grips
Graphical user interface with clear symbols
Elongated metal dome buttons on membrane keyboard
Rubber-protected housing
Operation without battery, power supplied by the machine
Update via USB-C standard cable
Software updates occur automatically via Windows software
Dimensions L/W/H 17x11x4cm Weight 300g

Special functions: *
Service reset date / mileage
Set date and time, e.g., after battery replacement
Reset adaptation values for the engine control unit
Specific actual values
Read current mileage
Read chassis number
Valve clearance service reset
Bleed ABS pressure modulator
Calibrate idle actuator
Initialize brake wear indicator
Calibrate windscreen
ESA/SAF calibration
Stepper adjustment
Calibration: height sensor, windscreen, idle actuator, film sensor, etc…
Sensor adjustment: exhaust flap, interference pipe flap, reverse assistance adjustment, speed sensor, transmission, idle actuator, lambda sensors.
Actuator diagnosis
No limitations or restrictions on models

*(These functions are not available for all models, engine variants, and control units.)

Supported protocols:
KWP-2000 Specific
CAN-BUS Specific
UDS Specific

Which models are supported?
All models from Euro 4 are equipped with the OBD-2 connector at BMW. Approximately from 08.2016

M1000RR
S1000RR
R1250RS
K1600GT
K1600GTL
K1600B
K1600 Grand America
R1250 RT
S1000R
R1250R
F900R
G310R
R18
R nineT / Pure / Urban
Scrambler
R1250GS
S1000XR
F900XR
F850GS
F750GS
G310GS
C400

Supported control units:
Engine electronics from Motronic 2.4
Central electronics
Instrument cluster
Tire pressure monitoring
ABS anti-lock braking system from I-ABS
Theft warning system
Radio
Function satellite
Active headlights
ESA electric shock absorber adjustment
SAF semi-active suspension
Access system
Telematics module
Audio platform
Body controller
Sideview assist
Chassis electronics
Electric hydraulic tilt stands

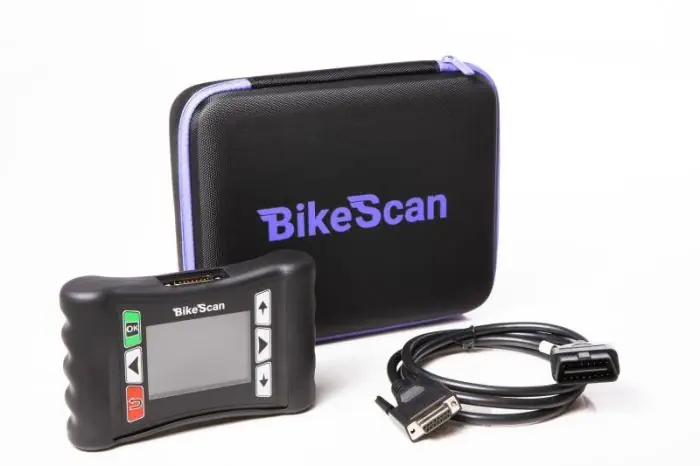

Scope of delivery:
Diagnostic device including 1 license for BMW, OBD-2 diagnostic cable, manual, and bag.
