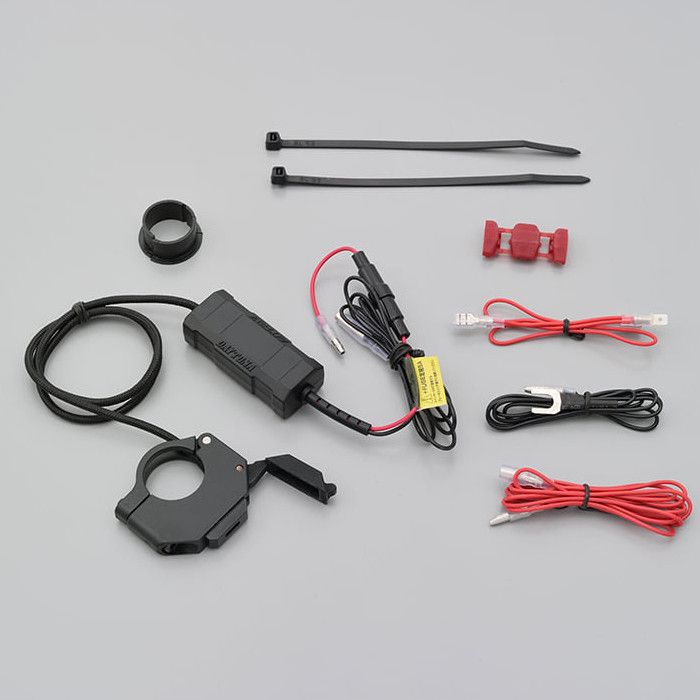

Daytona USB-C Socket "Slim" Single for 22.2 and 25.4 mm Handlebars
Product number:
1021-01-030-0217-0
Product information "Daytona USB-C Socket "Slim" Single for 22.2 and 25.4 mm Handlebars"
Power supply for the motorcycle handlebar with 1 USB-C connection.
Input: Switched + onboard network, e.g., at the brake light switch (DC 12V)
- Input voltage: DC12V
- Input voltage range: DC10V-16V
- Maximum input current: (no load) / 35mA or less
- Output voltage: 5V(4.7-5.35V), 9V(8.5-9.5V), 12V(11.4-12.6V)
- Output rated current: 5V/3A, 9V/2A, 12V/1.5A
- Output rated efficiency: 18W
- Material: Nylon
- Cable length: approx. 120 cm
- Supported charging standard: USB PD (Power Delivery) 3.0
- Compatible with iPhone and Android
Please note that devices that do not support fast charging may not be able to charge.
